Unit 1: Configuring MCP Servers

Hands-On Configuration (45 minutes)

Learning Objectives

  • Create API Collections from orchestrator recipes
  • Configure API endpoints with proper methods and descriptions
  • Create persona-based MCP servers (Guest and Manager)
  • Understand how tool descriptions enable LLM interactions

Overview: Two Server Personas

The Dewy Resort application uses two MCP servers, each tailored to a specific user persona:

Server Persona Purpose
Guest Server Hotel guests Self-service operations: check-in, checkout, booking management, service requests
Manager Server Hotel staff Operations management: all guest capabilities plus maintenance, case management, compensation workflows

Managers have greater authorization and access to business processes than guests. For example, only managers can process refunds via compensate_checkout_failure or file maintenance requests.

Note: Due to MCP platform requirements, each MCP server requires its own dedicated API Collection. You’ll create two collections—one for each persona—then create the corresponding MCP servers.

Step 0: Understand the Recipe Organization (5 min)

Before creating API Collections, take a moment to understand how the recipes are organized in your cloned repository:

workato/
├── atomic-salesforce-recipes/   # Single-purpose Salesforce operations
│   ├── search_contact_by_email.recipe.json
│   ├── search_room_by_number.recipe.json
│   ├── upsert_case.recipe.json
│   └── ...
├── atomic-stripe-recipes/       # Single-purpose payment operations
│   ├── create_stripe_payment_intent.recipe.json
│   └── ...
└── orchestrator-recipes/        # Composed workflows (what we'll expose as tools)
    ├── check_in_guest.recipe.json
    ├── process_guest_checkout.recipe.json
    └── ...

Key concept:

  • Atomic recipes perform a single operation (one API call, no business logic)
  • Orchestrator recipes compose multiple atomic recipes into complete workflows

When creating API Collections, you’ll select from the orchestrator-recipes folder — these are the complete workflows suitable for exposing as MCP tools.

Step 1: Create the Guest API Collection (10 min)

1.1 Navigate to API Platform

  1. In Workato, navigate to Tools → API Platform → API Collections
  2. Click Create Collection

1.2 Select Guest Recipes

  1. When prompted to choose a collection type, select Recipe folder
  2. Select the orchestrator-recipes folder
  3. Important: First, uncheck all endpoints (they may be pre-selected)
  4. Select only the following 7 recipes for the guest collection (listed in alphabetical order as they appear):
Recipe Purpose
check_in_guest Self-service check-in
create_booking_orchestrator Make new reservations
manage_booking_orchestrator Modify existing bookings
process_guest_checkout Self-service checkout with payment
search_cases_on_behalf_of_guest Track their service requests
search_rooms_on_behalf_of_guest View their room information
submit_guest_service_request Request housekeeping, amenities

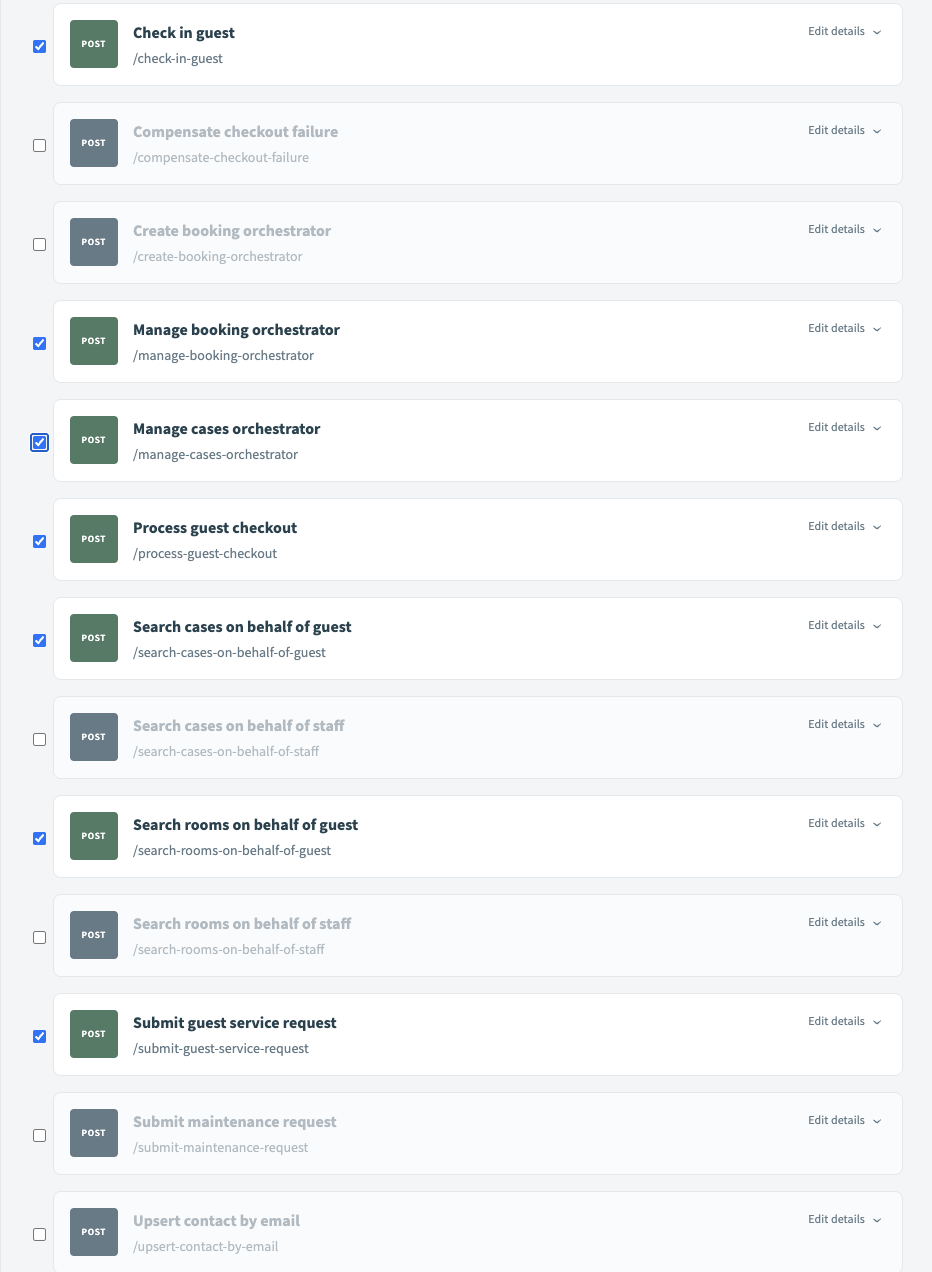

Guest API Collection endpoint selection

1.3 Configure Guest Endpoints

For each endpoint on the screen:

  1. Set the Method to POST
  2. Copy/paste the corresponding description from below into the Description field

Endpoint: check_in_guest

Orchestrate hotel check-in: validates guest/reservation prerequisites, checks room vacancy, executes state transitions (Booking→Checked In, Room→Occupied, Opportunity→Checked In). Requires guest_email; optional check_in_date (default: today), booking_number, payment_id (default: PENDING_CHECKIN). Returns booking/room details or error codes (404: guest/reservation not found, 409: multiple reservations or room not vacant).

Endpoint: create_booking_orchestrator

Create new hotel booking: upserts guest contact, validates room availability for date range, creates Opportunity and Booking__c records, marks room Reserved. Requires guest_email, guest_first_name, guest_last_name, room_number, check_in_date, check_out_date; optional guest_phone, number_of_guests (default: 1), special_requests, booking_external_id. Returns booking confirmation or error codes (400: room not found, 409: room not available for dates).

Endpoint: manage_booking_orchestrator

Update existing booking by external_id. Resolves guest_email→contact_id and room_number→room_id automatically. Requires external_id; optional guest_email, room_number, check_in_date, check_out_date, number_of_guests, special_requests. Returns updated booking details or error codes (400: booking/guest/room not found).

Endpoint: process_guest_checkout

Orchestrate hotel checkout with Stripe payment: validates guest/booking, processes payment, executes state transitions (Booking→Checked Out, Room→Dirty, Opportunity→Closed Won). Requires guest_email, guest_name, amount (cents), payment_method_id, idempotency_token; optional room_number, booking_number. Returns payment confirmation or error codes (402: payment failed, 404: guest/booking not found, 202: 3D Secure required with next_action_url).

Endpoint: search_cases_on_behalf_of_guest

Search service cases filed by a specific guest. Requires guest_email; optional status_filter (Open/Closed/All, default: Open), case_type_filter (Facilities/Service Request/Housekeeping), limit (default: 10). Returns array of cases with case_number, type, status, priority, subject, description, room info, plus count.

Endpoint: search_rooms_on_behalf_of_guest

Search rooms associated with a guest's bookings. Requires guest_email; optional filter (current/historical/all, default: current), limit (default: 10). Returns array of rooms with room_number, status, room_type, floor, nightly_rate, max_occupancy, plus count and filter_applied.

Endpoint: submit_guest_service_request

Create Salesforce Case for guest service request (housekeeping, amenities). Validates guest contact exists with type=Guest, links case to guest and room. Requires idempotency_token, guest_email, guest_first_name, guest_last_name, room_number, type, priority, description. Returns case_id/case_number or error codes (400: guest not found, invalid contact type, or room not found).

1.4 Name and Save the Guest Collection

  1. Click Next
  2. Enter the collection details:
    • Name: dewy-resort-guest
    • Version: 1.0
    • Description: Self-service API endpoints for hotel guests to manage check-in, checkout, bookings, and service requests.
  3. Click Save

CHECKPOINT: Guest API Collection created with 7 endpoints

Step 2: Create the Manager API Collection (10 min)

2.1 Create Another Collection

  1. Return to API Collections
  2. Click Create Collection

2.2 Select Manager Recipes

  1. Select Recipe folder
  2. Select the orchestrator-recipes folder
  3. Important: First, uncheck all endpoints (they may be pre-selected)
  4. Select only the following 10 recipes for the manager collection (listed in alphabetical order as they appear):
Recipe Purpose
check_in_guest Check in guests
compensate_checkout_failure Process refunds for failed checkouts
create_booking_orchestrator Create bookings for guests
manage_booking_orchestrator Modify any booking
manage_cases_orchestrator Create/update any case
process_guest_checkout Process guest checkouts
search_cases_on_behalf_of_staff View all cases across the hotel
search_rooms_on_behalf_of_staff View all rooms with guest details
submit_maintenance_request Report maintenance/facilities issues
upsert_contact_by_email Manage guest/staff contacts

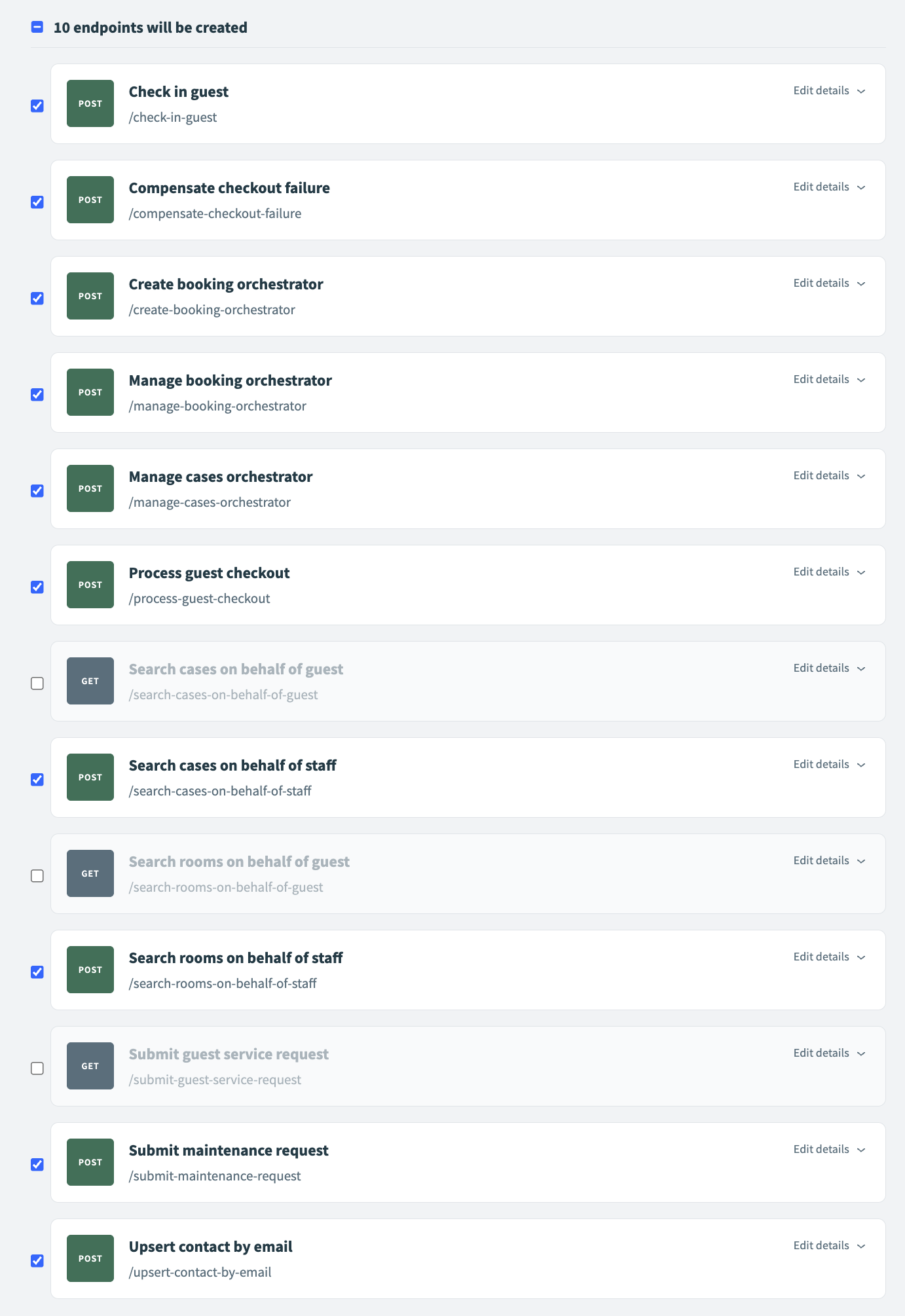

Manager API Collection endpoint selection

2.3 Configure Manager Endpoints

For each endpoint, set Method to POST and paste the corresponding description:

Endpoint: check_in_guest

Orchestrate hotel check-in: validates guest/reservation prerequisites, checks room vacancy, executes state transitions (Booking→Checked In, Room→Occupied, Opportunity→Checked In). Requires guest_email; optional check_in_date (default: today), booking_number, payment_id (default: PENDING_CHECKIN). Returns booking/room details or error codes (404: guest/reservation not found, 409: multiple reservations or room not vacant).

Endpoint: compensate_checkout_failure

Saga compensation for failed checkout: refunds Stripe payment and reverts Salesforce state (Booking→Checked In, Room→Occupied, Opportunity→Checked In). Requires payment_intent_id, guest_email, idempotency_token; optional reason (for audit). Returns refund_id/refund_amount/refund_status or error codes (404: payment not found, 422: payment not refundable).

Endpoint: create_booking_orchestrator

Create new hotel booking: upserts guest contact, validates room availability for date range, creates Opportunity and Booking__c records, marks room Reserved. Requires guest_email, guest_first_name, guest_last_name, room_number, check_in_date, check_out_date; optional guest_phone, number_of_guests (default: 1), special_requests, booking_external_id. Returns booking confirmation or error codes (400: room not found, 409: room not available for dates).

Endpoint: manage_booking_orchestrator

Update existing booking by external_id. Resolves guest_email→contact_id and room_number→room_id automatically. Requires external_id; optional guest_email, room_number, check_in_date, check_out_date, number_of_guests, special_requests. Returns updated booking details or error codes (400: booking/guest/room not found).

Endpoint: manage_cases_orchestrator

Create or update Salesforce Case by idempotency_token. Resolves guest_email→contact_id and room_number→room_id automatically. Requires idempotency_token; optional guest_email, room_number, type, priority, status, subject, description, origin (Web/Phone/Email/Internal). Returns case_id/case_number or error codes (400: guest/room not found).

Endpoint: process_guest_checkout

Orchestrate hotel checkout with Stripe payment: validates guest/booking, processes payment, executes state transitions (Booking→Checked Out, Room→Dirty, Opportunity→Closed Won). Requires guest_email, guest_name, amount (cents), payment_method_id, idempotency_token; optional room_number, booking_number. Returns payment confirmation or error codes (402: payment failed, 404: guest/booking not found, 202: 3D Secure required with next_action_url).

Endpoint: search_cases_on_behalf_of_staff

Search all service cases with staff-level access. Optional guest_email, status_filter (New/In Progress/Closed), priority_filter (Low/Medium/High/Urgent), case_type_filter (Maintenance/Facilities/Service Request/Housekeeping), room_number, limit (default: 50). Returns array of cases with full details including guest contact info.

Endpoint: search_rooms_on_behalf_of_staff

Search all hotel rooms with staff-level access. Optional status_filter (Vacant/Occupied/Dirty/Maintenance), floor_filter (1-10), limit (default: 20). Returns array of rooms with full details including current guest name/email/phone, plus count.

Endpoint: submit_maintenance_request

Create Salesforce Case for staff-reported maintenance/facilities issues. Validates contact exists with type=Manager, links case to room. Requires idempotency_token, manager_email, manager_first_name, manager_last_name, room_number, type (Maintenance/Facilities), priority, description. Returns case_id/case_number or error codes (400: manager not found, invalid contact type, or room not found).

Endpoint: upsert_contact_by_email

Find or create Salesforce Contact by email. Requires email, first_name, last_name, contact_type (Guest/Manager/Vendor); optional phone, account_id (uses default if omitted). Returns contact_id, found (boolean), created (boolean). HTTP 200 if existing contact found, 201 if new contact created.

2.4 Name and Save the Manager Collection

  1. Click Next
  2. Enter the collection details:
    • Name: dewy-resort-manager
    • Version: 1.0
    • Description: Operations API endpoints for hotel managers including guest services, maintenance, case management, and compensation workflows.
  3. Click Save

CHECKPOINT: Manager API Collection created with 10 endpoints

Step 3: Activate All Endpoints (2 min)

Run the following command to activate all endpoints in both collections:

make enable-api-endpoints

This script activates each endpoint so they’re ready to be used by MCP servers.

CHECKPOINT: All endpoints activated in both collections

Step 4: Create the Guest MCP Server (5 min)

4.1 Navigate to MCP Servers

  1. In API Platform, click MCP Servers in the left sidebar
  2. Click Create MCP Server

4.2 Configure the Guest Server

  1. Name: dewy-resort-guest
  2. API Collection: Select dewy-resort-guest
  3. Description: Copy and paste the following:
MCP server for hotel guests to manage their stay at Dewy Resort. Provides self-service tools for check-in, checkout, booking management, and service requests. Guests can view their own room and case information but cannot access other guests' data or staff-only operations.
  1. Click Create

CHECKPOINT: Guest MCP server created

Step 5: Create the Manager MCP Server (5 min)

5.1 Create the Server

  1. Click Create MCP Server
  2. Configure:
    • Name: dewy-resort-manager
    • API Collection: Select dewy-resort-manager
    • Description: Copy and paste the following:
MCP server for hotel managers to manage operations at Dewy Resort. Provides tools for guest check-in/checkout, booking management, maintenance requests, case management, and compensation workflows. Managers have elevated access to view all rooms, all cases, and process refunds.
  1. Click Create

CHECKPOINT: Manager MCP server created

Step 6: Configure and Test the MCP Servers (10 min)

6.1 Get Connection Details from Workato

For each MCP server, you need to copy the URL and token:

Get the Server URL:

  1. Click on the MCP server name
  2. Copy the Server URL

Get the Token:

  1. Go to the MCP server’s Settings tab
  2. Find Developer MCP Token
  3. Copy only the token value (not the full header)

6.2 Configure Your Local Environment

Open your project’s app/.env file and add the following variables:

# Guest MCP Server
MCP_GUEST_URL=<paste guest server URL here>
MCP_GUEST_TOKEN=<paste guest server token here>

# Manager MCP Server
MCP_MANAGER_URL=<paste manager server URL here>
MCP_MANAGER_TOKEN=<paste manager server token here>

6.3 Unit 1 Checklist

  • Guest API Collection created with 7 endpoints, all set to POST
  • Manager API Collection created with 10 endpoints, all set to POST
  • All endpoints activated via make enable-api-endpoints
  • Guest MCP server created and linked to guest collection
  • Manager MCP server created and linked to manager collection
  • .env file configured with MCP server URLs and tokens

CHECKPOINT: MCP servers created and configured. Testing happens in Unit 2.

What You Built

Two API Collections:

  • dewy-resort-guest v1.0 — 7 endpoints for guest self-service
  • dewy-resort-manager v1.0 — 10 endpoints for staff operations

Two MCP Servers:

Server API Collection Key Capabilities
Guest dewy-resort-guest Self-service check-in/out, booking, service requests
Manager dewy-resort-manager Full operations including maintenance, case management, refunds

The tool descriptions you added help the LLM understand:

  • What each tool does
  • When to use it
  • What inputs are required vs optional
  • What outputs to expect (including error codes)

This is the power of well-designed MCP tool descriptions—they enable natural language interaction with complex backend workflows.

Troubleshooting

Issue Solution
Endpoint not appearing in MCP server Verify endpoint is in an active API collection; check recipe is running
Can’t find recipes in folder Use the search box to filter by recipe name
Authentication errors Regenerate API key; verify copied correctly (no extra spaces)
make enable-api-endpoints fails Check WORKATO_API_TOKEN in .env is valid
