Architecture Diagrams

Visual documentation of the Dewy Resort MCP compositional architecture.

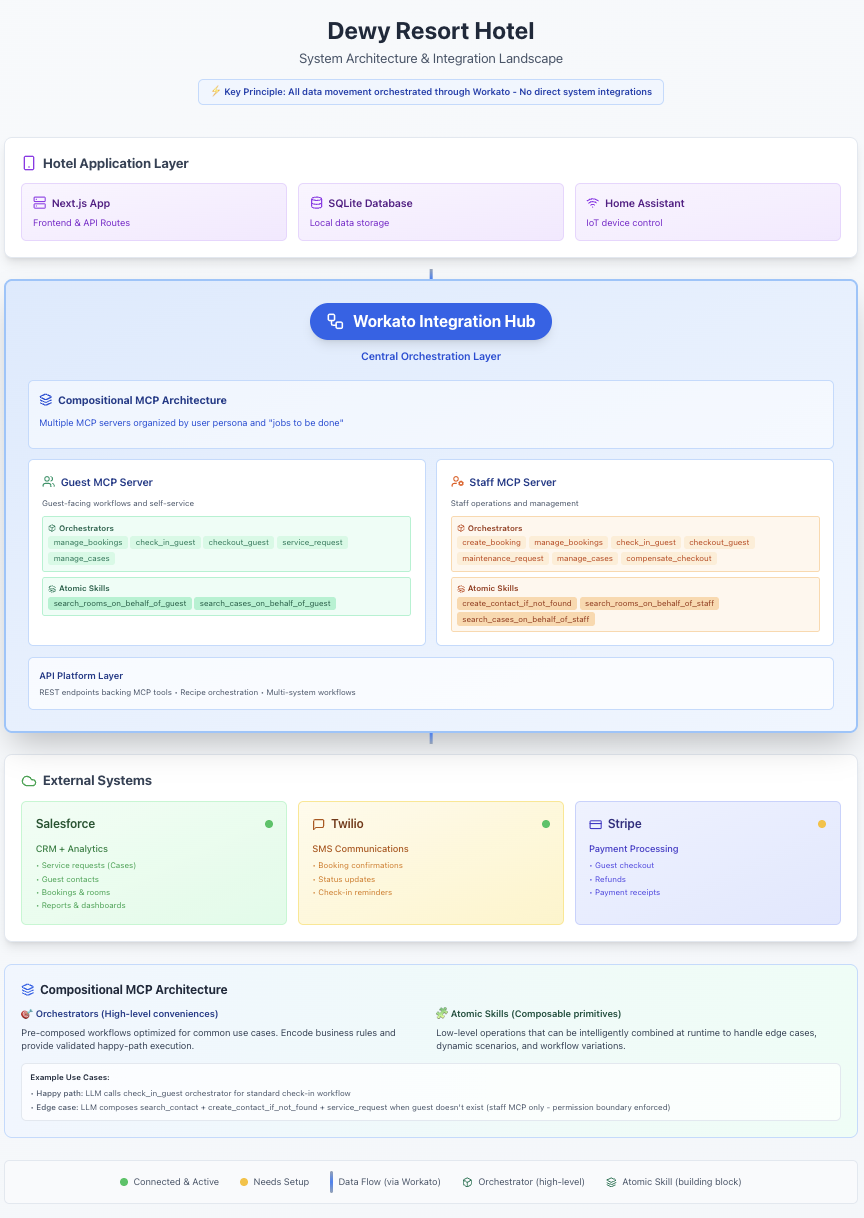

System Architecture Overview

The overall system architecture showing how the Next.js frontend connects to Workato orchestrators, which coordinate Salesforce and Stripe operations.

System Architecture

Workflow Diagrams

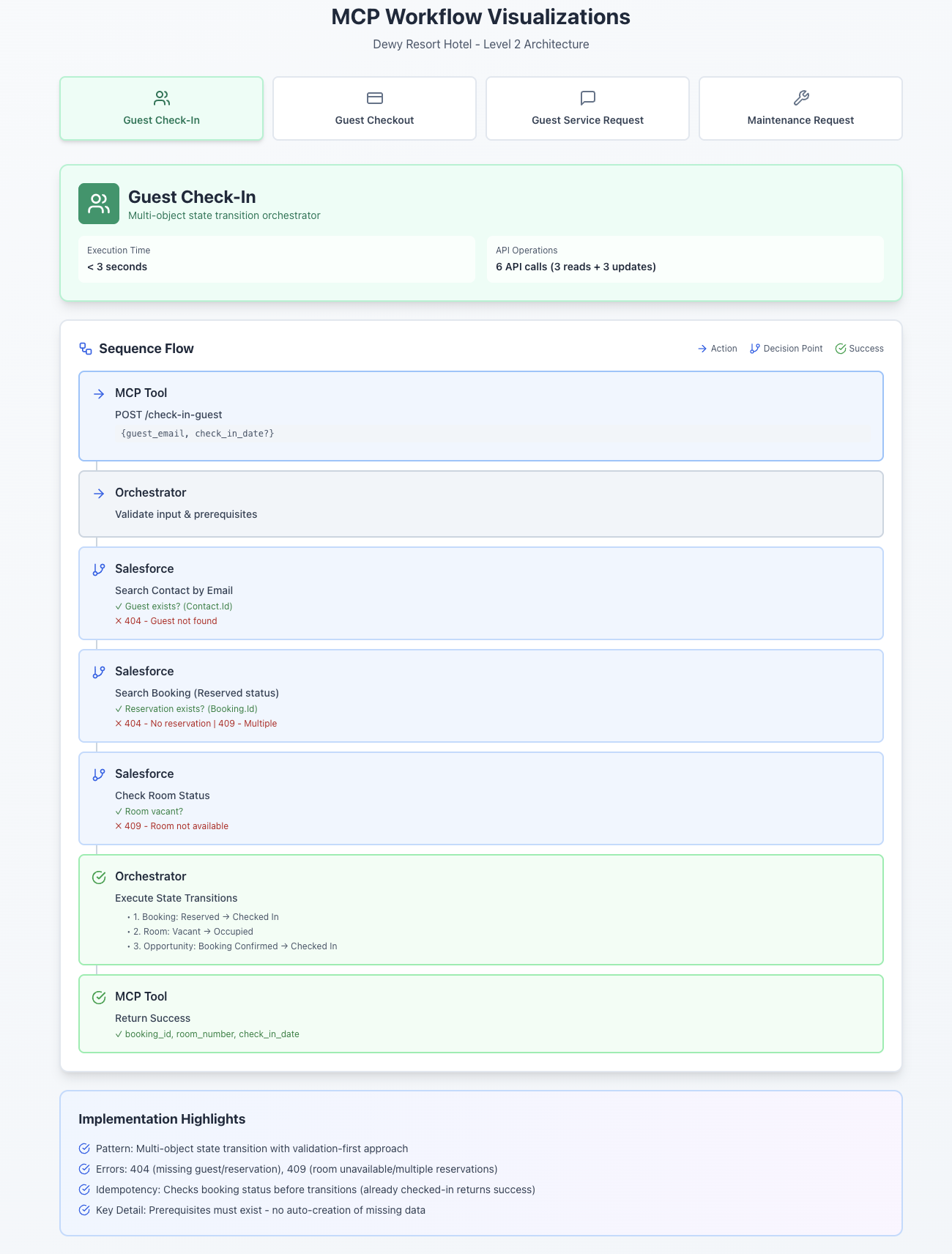

Guest Check-In Flow

The check-in orchestrator validates the guest and booking, then performs atomic state transitions across booking, room, and opportunity records.

Guest Check-In Flow

Key patterns:

  • Validation before mutation
  • Sequential atomic operations
  • Structured error responses (404, 409)

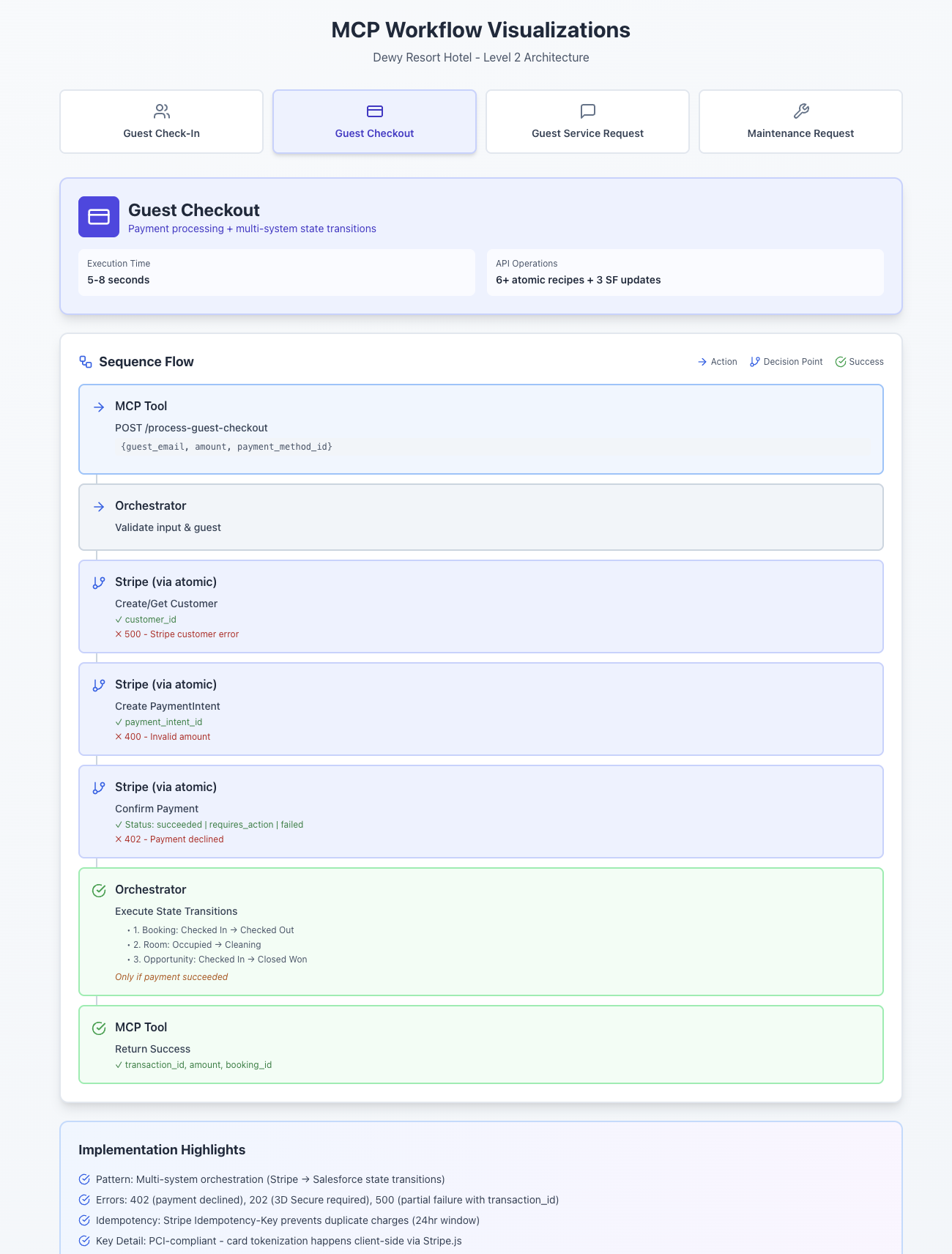

Guest Checkout Flow

The checkout orchestrator handles billing finalization, room status updates, and opportunity closure.

Guest Checkout Flow

Key patterns:

  • Cross-system coordination (Salesforce + Stripe)
  • Idempotency tokens for payment safety
  • Saga pattern for failure recovery

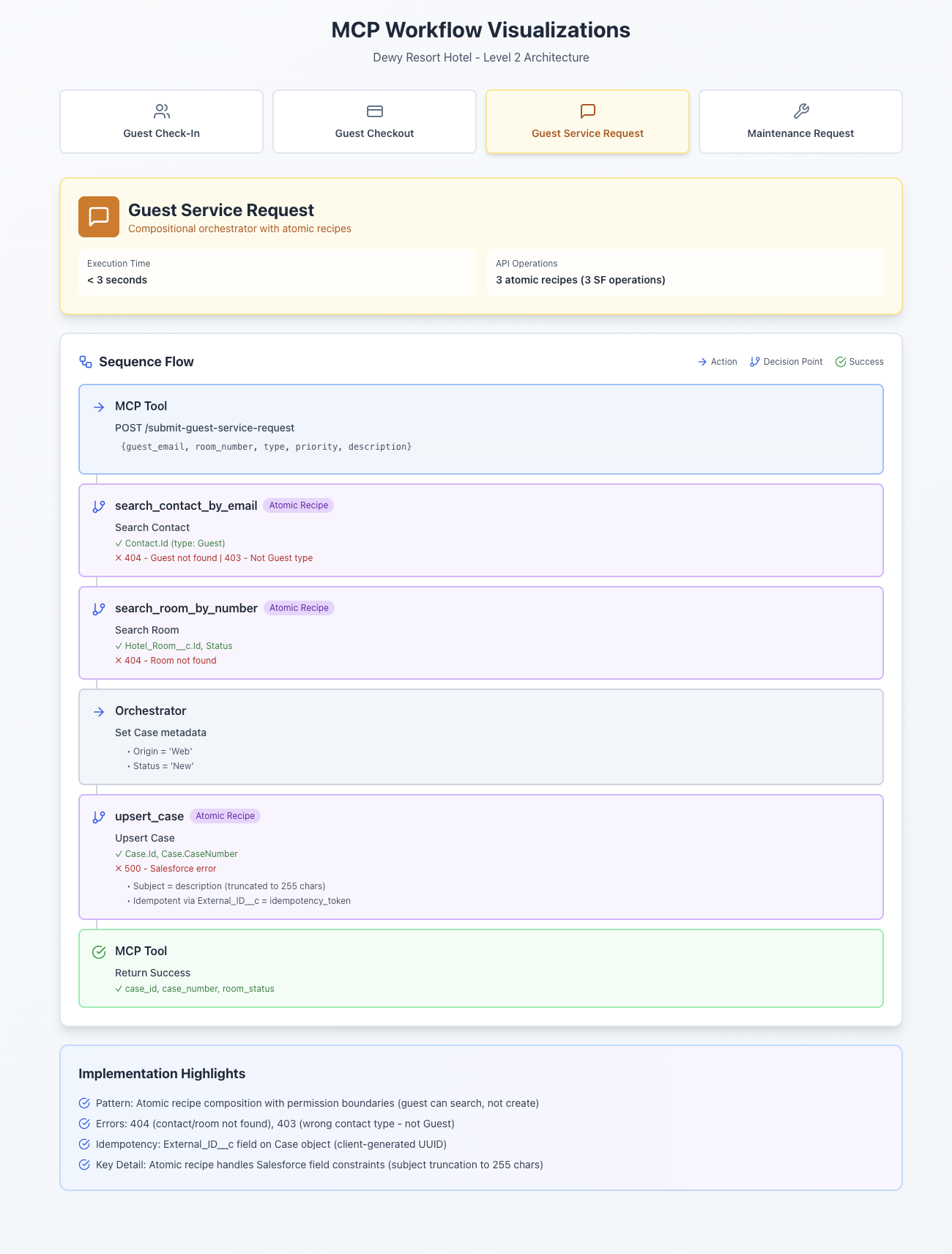

Guest Service Request Flow

Handles guest requests for amenities, housekeeping, and other services.

Guest Service Request Flow

Key patterns:

  • Guest context validation
  • Case creation with proper categorization
  • Automatic routing based on request type

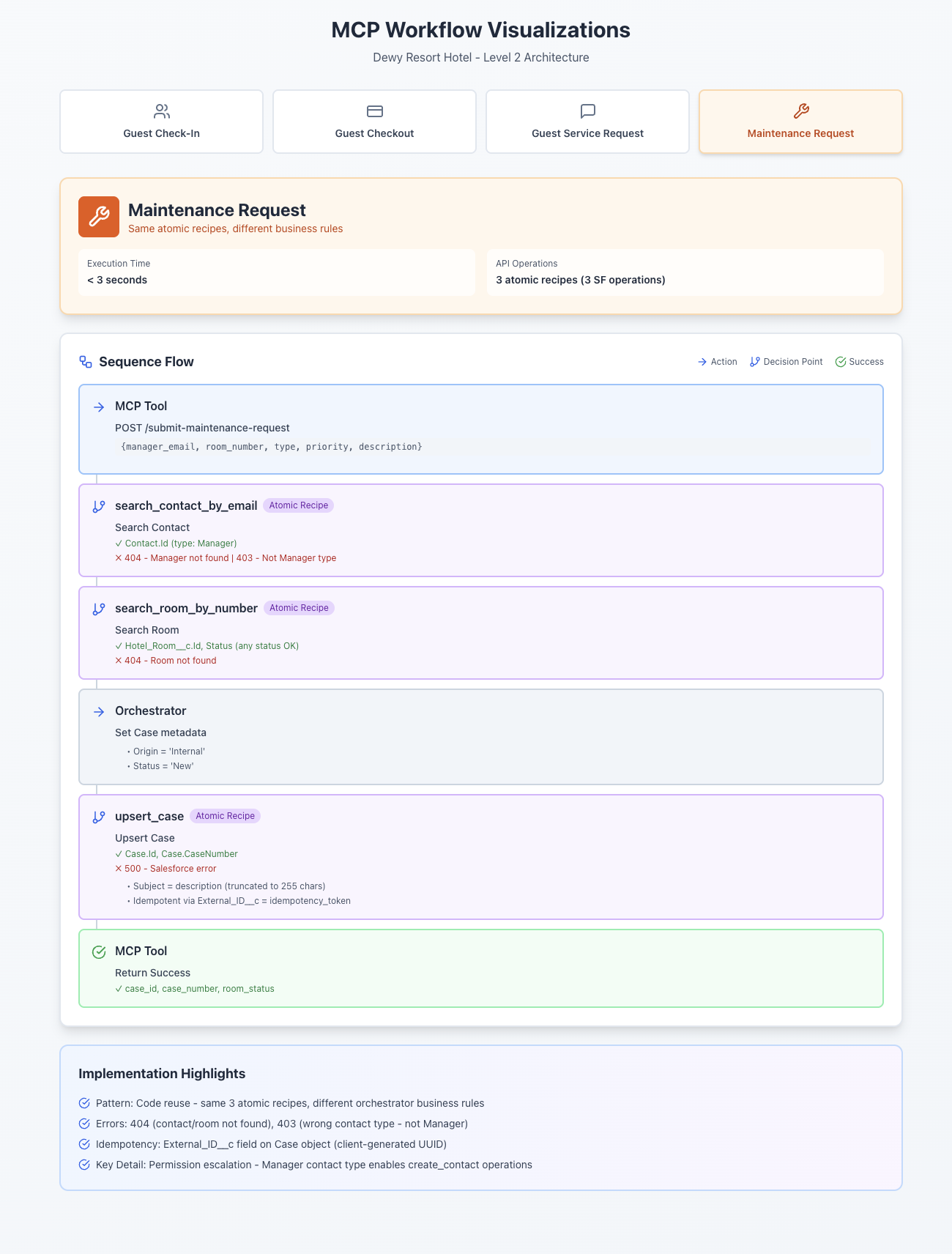

Maintenance Request Flow

Processes maintenance requests from staff, creating work orders and updating room status.

Maintenance Request Flow

Key patterns:

  • Staff authorization validation
  • Work order lifecycle management
  • Room status coordination

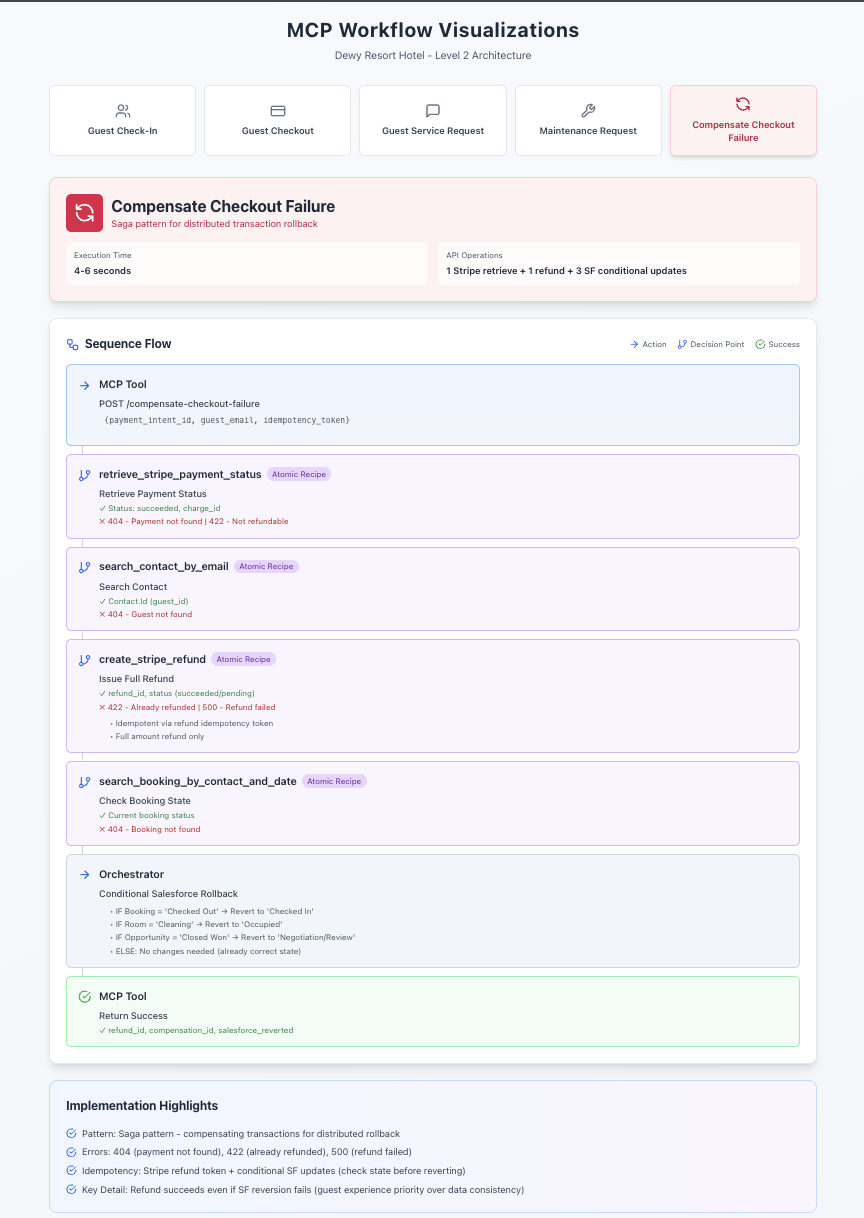

Checkout Failure Compensation (Saga Pattern)

Demonstrates the saga pattern for handling distributed transaction failures during checkout.

Checkout Failure Compensation

Key patterns:

  • Compensating transactions for rollback
  • Partial failure handling
  • Audit trail maintenance

Pattern Summary

Pattern Purpose Example
Validation First Check prerequisites before mutations Verify guest exists before check-in
Atomic Composition Build workflows from single-purpose operations Orchestrator calls atomic recipes
Structured Errors Return specific HTTP codes with error details 404 for not found, 409 for conflicts
Idempotency Safe retry behavior External_ID__c fields, Stripe Idempotency-Key
Saga Pattern Coordinate distributed transactions Compensation flow on payment failure
